Description

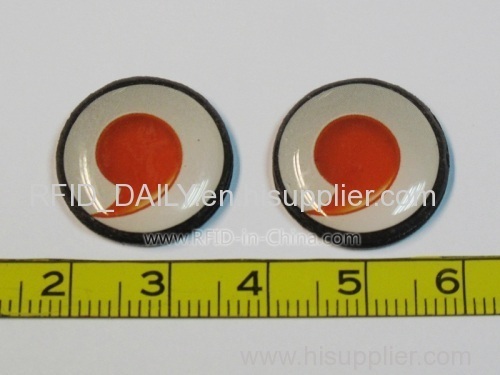

RFID On-metal Tag-23 with 3Mglue on back side, it can be direct used on any metal surface and with good performance even under harsh environment. It is ideal for use in asset tracking applications such as railway and warehousing solutions under metallic environment.

This On-metal Tag is available for customization on logo and size.

Specification

l  Type: Contactless R/O or R/W

l  Operating Frequency:  LF (125KHz) or HF (13.56MHz)

l  IC Available at 125KHz: EM4200, EM4100 EM4001, TK4100, GK4100

l  IC Available at 13.56MHz:

I-CODE (ISO 15693-3), Mifare® Ultralight (ISO14443A), Mifare®1K (ISO14443A), Mifare®4K (ISO14443A), Tag-it™ HF-I (ISO 15693-3), others on request.

l  Size: Dia.18mm/20mm/25mm, thickness:2.5mm (Other on request)

l  Reading Distance: Up to100px~250px

l  Material: Epoxy / Special Magnetic Material /3M® Glue

l  Operating Temperature: -40º C to +80º C

l  Storage Temperature: -40º C to +100º C

Competitive Advantage

1.   Waterproof, anti-acid, anti-alkali, crashworthy

2.   100, 000 times reading & writing

3.   A customized logo can be printed on the tag

4.   Excellent read/write performance on any metal surface

5.   Exceptional temperature & harsh environmental performance
